Product details

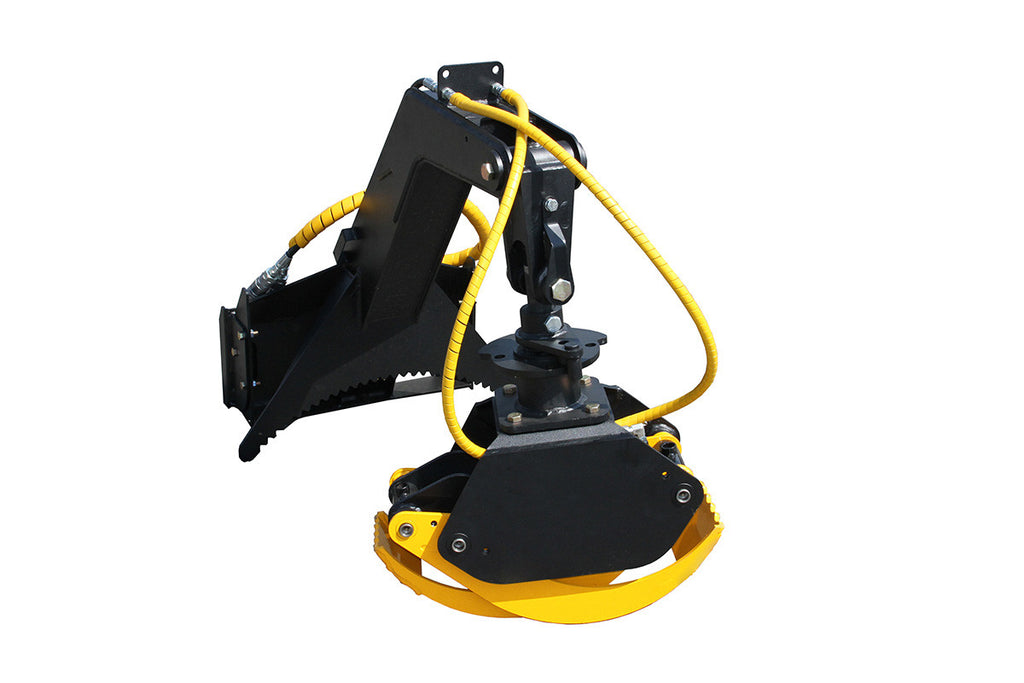

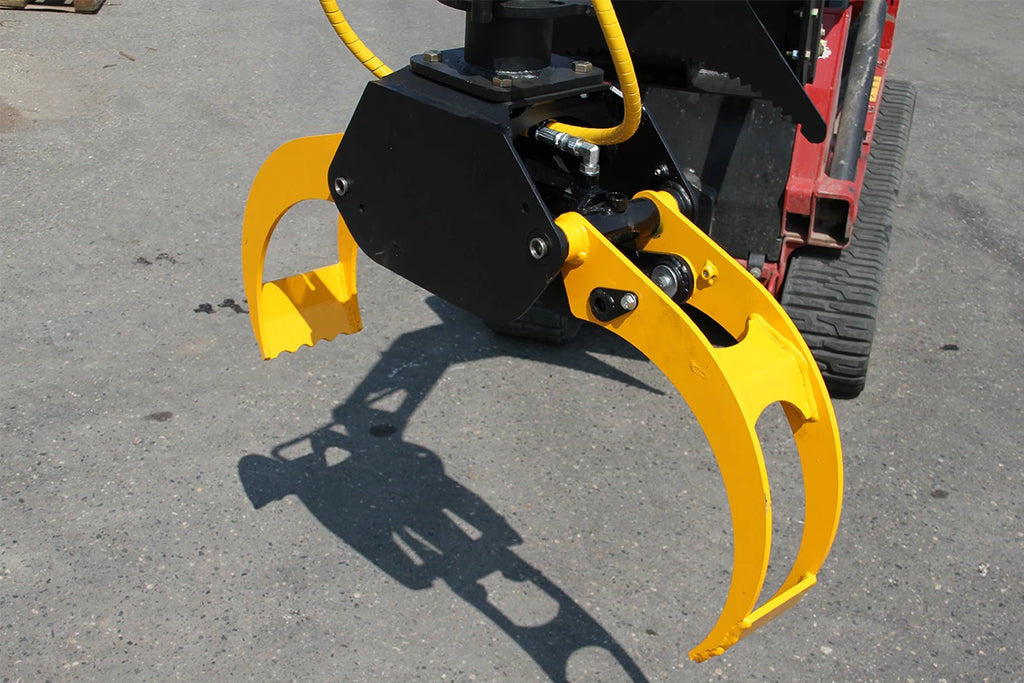

Spartan Mini Skid Steer Log Grapple
Excellent for moving trees, boulders and large wood piles efficiently with your skid steer. With the Mini Multi-Purpose Grapple trees and debris can be delicately removed, re-positioned or loaded without damaging the surrounding landscape.
Key features
- Closes to less than 3 inches
- Protected grease zerks
- Replaceable grapple insert bushings
- Push bar standard equipment
- Optional hydraulic rotation is available
Specifications
| Maximum Jaw Opening Width | 38 in |
| Minimum Jaw Closing Diameter | 3 in |
| Rotator Capacity | 9000 lbs |
| Boom Capacity | 1500 lbs |
| Grapple Cylinder Bore | 2.5 in |
| Hydraulic Pump Requirements | 5-15 gpm |
| System Pressure Requirements | 2000-3000 psi |
| Rotation | Manual |
| Weight | 395 lbs |
Warranty
1 Year Warranty (does not cover wear items or hoses & couplers).
Specifications are provided by the manufacturer and may change without notice.
