ICM GRA-L 16 Three-Point Log Grapple
- Free shippingEligible orders, contiguous US
- Manufacturer warrantyCoverage varies by brand
- Real human supportMon–Fri, 9am–5pm EST
Product details

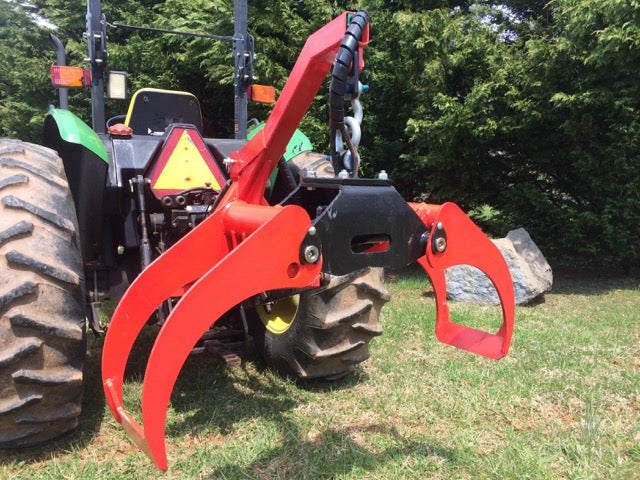

ICM GRA-L 16 Three-Point Log Grapple

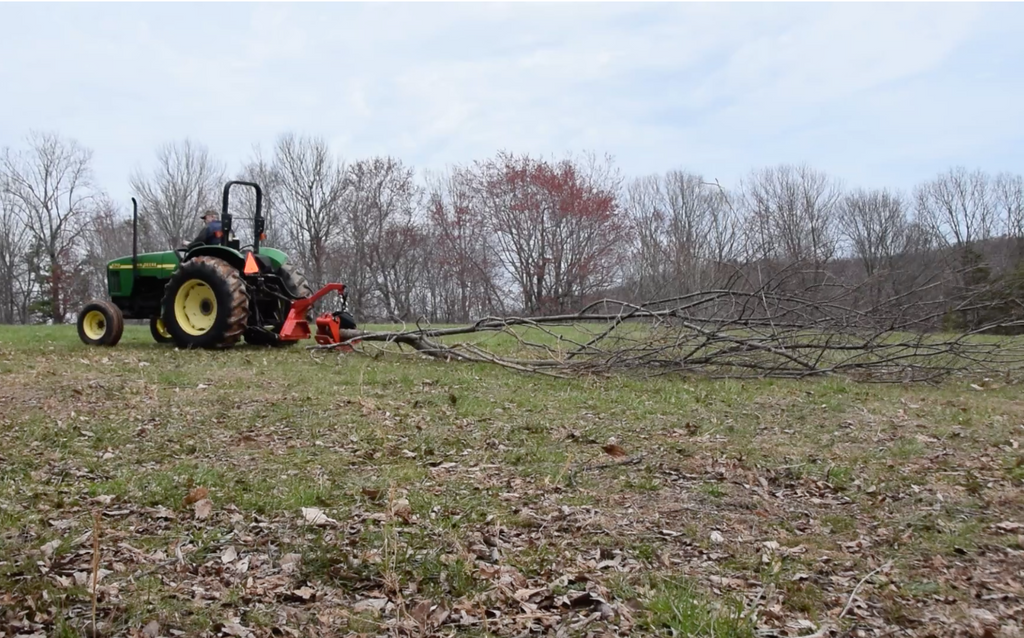

Log Grapple with 3 point hitch. ICM GRA-L 16 Hydraulic Grapple with 42" opening spread and professional grade 3 point hitch attachment. Manual centering allows the grapple to center on its own via gravity. The machine operator need only position the tractor over the load, grasp it, and away you go. Grabbing teeth at the base of the three point hitch allow the operator to lift a log. Only requires one hydraulic circuit to function. Load capacity is 2,200 lbs on the grapple.
ICM GRA-L Light series log grapple with horizontal cylinder.
Specifications
| Grapple model | ICM GRA-L 16 |
| Opening spread | 42 in |
| Grapple weight | 116 lbs |
| Grapple capacity | 2,200 lbs |
| Max pressure | 3,625 PSI |
| A (inches) | 41.7 |
| B (inches) | 9.50 |
| H1 (inches) | 21.4 |
| H2 (inches) | 15.7 |
| D (inches) | 2.6 |
| Hydraulic rotator recommendation | R1C / R3C |
| Centering | Manual (gravity) |
| Hydraulic circuits required | 1 |
Specifications are provided by the manufacturer and may change without notice.
